Sanhe Group's advanced process equipment
TME:
2019-05-19
Milling workshop: The main equipment is equipped with 6 sets of 6R laser grinders. This equipment is used for the first time in the electrolytic manganese industry. The milling capacity is 12 tons/hour, which is the 3R reaming machine currently used in the same industry. Double, and energy saving is about 10%, the supporting pulse dust collector can completely solve the dust problem, the mineral powder conveying metering and feeding, adopting automatic control and closed system, which greatly solves the problems of slow manual feeding, heavy weight and powder semi-dissipation. Chemical workshop: The main equipment includes 16 submerged tanks and 2 pulping tanks. The effective volume of the leaching tank and the pulping tank is 320m3/set, which is the largest leaching tank and pulping tank in the industry. The leaching rate is over 95%, leading the industry by about 3%. The pulping tank is equipped with dust removal equipment, which solves the dust generated by the feeding. The workshop is equipped with four acid mist absorption towers, which greatly improves the production site environment. The generated wastewater is completely recycled. Pressure filtration workshop: The main equipment has 10 high-strength 400m3 membrane filter presses. This equipment can control the moisture content of the filter residue below 25%. Compared with the filter press commonly used in the same industry, the water content is 5% lower. The workshop cleans the waste water such as filter cloth. After recycling, it is discharged into the chemical plant to replenish the liquid. Electrolytic workshop: There are 148 electrolytic tanks in each electrolysis workshop, the transformer capacity is 12000A (two times the industry access standard), and the electrolyzer takes anti-corrosion treatment of overhead, ground three cloth five oil + PVC soft plastic board to prevent leakage.
Milling workshop: The main equipment is equipped with 6 sets of 6R laser grinders. This equipment is used for the first time in the electrolytic manganese industry. The milling capacity is 12 tons/hour, which is the 3R reaming machine currently used in the same industry. Double, and energy saving is about 10%, the supporting pulse dust collector can completely solve the dust problem, the mineral powder conveying metering and feeding, adopting automatic control and closed system, which greatly solves the problems of slow manual feeding, heavy weight and powder semi-dissipation.

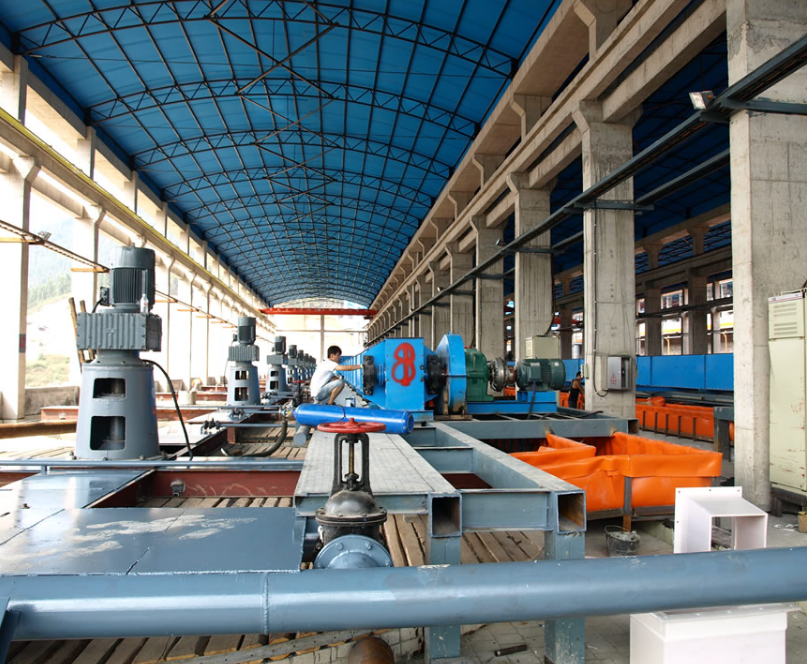

Chemical workshop: The main equipment includes 16 submerged tanks and 2 pulping tanks. The effective volume of the leaching tank and the pulping tank is 320m3/set, which is the largest leaching tank and pulping tank in the industry. The leaching rate is over 95%, leading the industry by about 3%. The pulping tank is equipped with dust removal equipment, which solves the dust generated by the feeding. The workshop is equipped with four acid mist absorption towers, which greatly improves the production site environment. The generated wastewater is completely recycled.
Pressure filtration workshop: The main equipment has 10 high-strength 400m3 membrane filter presses. This equipment can control the moisture content of the filter residue below 25%. Compared with the filter press commonly used in the same industry, the water content is 5% lower. The workshop cleans the waste water such as filter cloth. After recycling, it is discharged into the chemical plant to replenish the liquid.
Electrolytic workshop: There are 148 electrolytic tanks in each electrolysis workshop, the transformer capacity is 12000A (two times the industry access standard), and the electrolyzer takes anti-corrosion treatment of overhead, ground three cloth five oil + PVC soft plastic board to prevent leakage.
